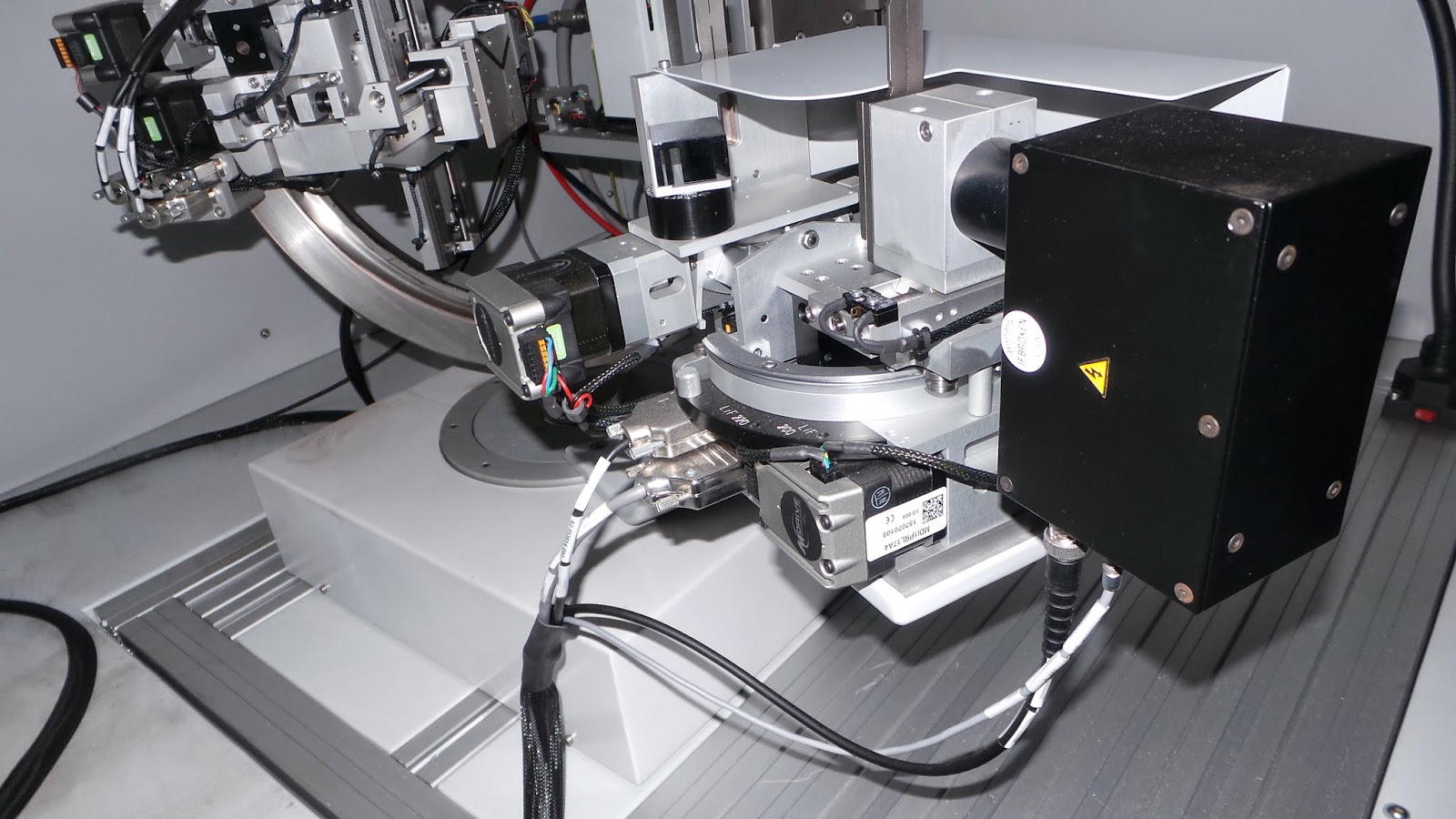

Used XRD X-ray BEDE D1


Used XRD X-ray BEDE D1









Spec
Source

Standard 2.2kw sealed tube X-ray generator
Parabolic Multilay Mirror
Choice of beam conditioning crystals for wide range of resolutions (5",10",12",25")
Intelligent Alignment System,automatically configuring the tool with the best optics for the sepecified measurement

Sample stage

Simpletilt / Z stage
Full Eulerian cradle with
Highest resolution goniometer commercially available (0.16" resolution on Omega and Theta)
Sub-micron resolution on all translation axes
150mm scanning on X and Y,with 200mm wafer capability
135˚range on tilt(chi)for pole figure and residual stress capability
Full 360˚ range on phi (rotation)

Vertical geometry to avoid gravity sag

Detection

High dynamic range scintillation detector (EDRc)
choice of detector optics
Dual channel triple axis analuzer crystal,with high intensity and high resolution channels for precise detector angle definition
Soller slits for polycrystalline XRD work to allow a wide parallel beam into the detector-essentiall for glancing incidence XRD work

Motorized detector slits available
Intelligent Alignment System,automatically configuring the tool with the best optics for the specified measurement

Maker : BEDE
Model : D1
Vintage : 2007
Status : Operational - power off

This is available.
When you are interested in this equipment, contact us

grapevine_mj@naver.com
+82 10 4022 8019
Jin
